EXTERNAL VENETIAN BLINDS
WAREMA Precision Solar Louvers with Automated Sun-Tracking & Slat Tilting
Designed for Architectural Distinction & Performance
Manufactured in partnership with Germany's premier sun shading pioneer WAREMA, External Venetian Blinds are the ultimate solution for passive thermal energy management and glare reduction. Positioned on the exterior building envelope, the 80mm rolled edge or Z-shaped interlocking aluminum slats intercept up to 88% of incoming solar heat before it reaches the glass, dramatically reducing HVAC air conditioning loads. Automated tilting slats allow daylight to bounce onto interior ceilings while preserving exterior visibility.
Key Engineering Highlights
- German WAREMA engineering providing g-tot thermal values down to 0.05
- Precision slat tilting from 0° to 90° for optimized daylight harvesting without glare
- 80mm rolled-edge slats with special sound-deadening sealing lips in every slat
- Certified wind stability engineered for high-rise facades and coastal villa exposures
- Seamless integration into KNX building automation systems with automated astronomical sun tracking
Require CAD / BIM Specifications?
Contact our engineering team for custom drawings, wind calculations, and site surveys.
Technical Specifications
Product #0780mm rolled-edge (80R) / 73mm & 93mm dim-out Z-slats
Blocks up to 88% of direct solar radiation
Wind load resistance tested up to 20 m/s (72 km/h)
Extruded aluminum side channels or 3.2mm polyamide-sheathed wire cables
WAREMA / Somfy SMI digital motors with millimetre positioning
KNX / BACnet building management system integration

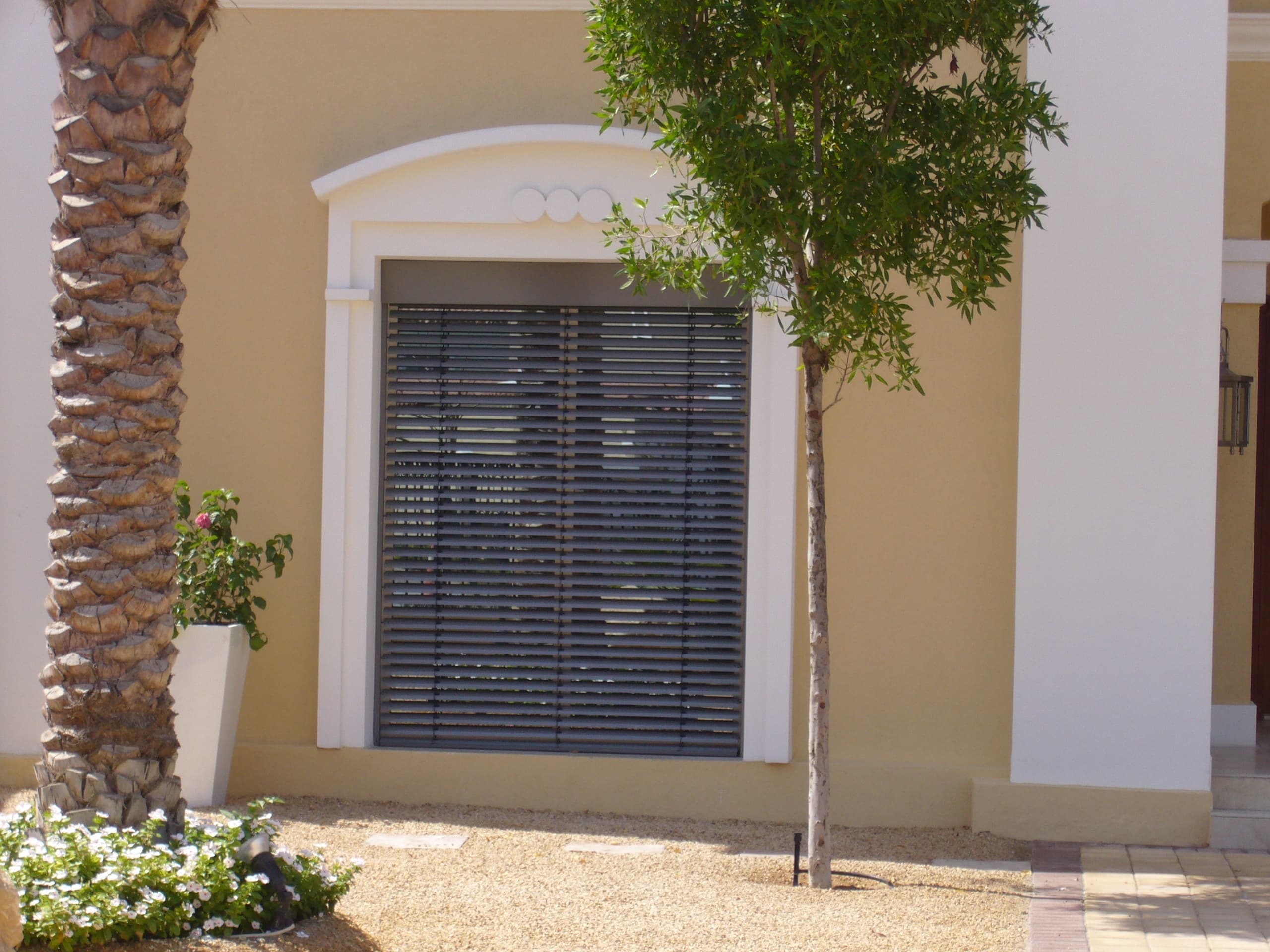

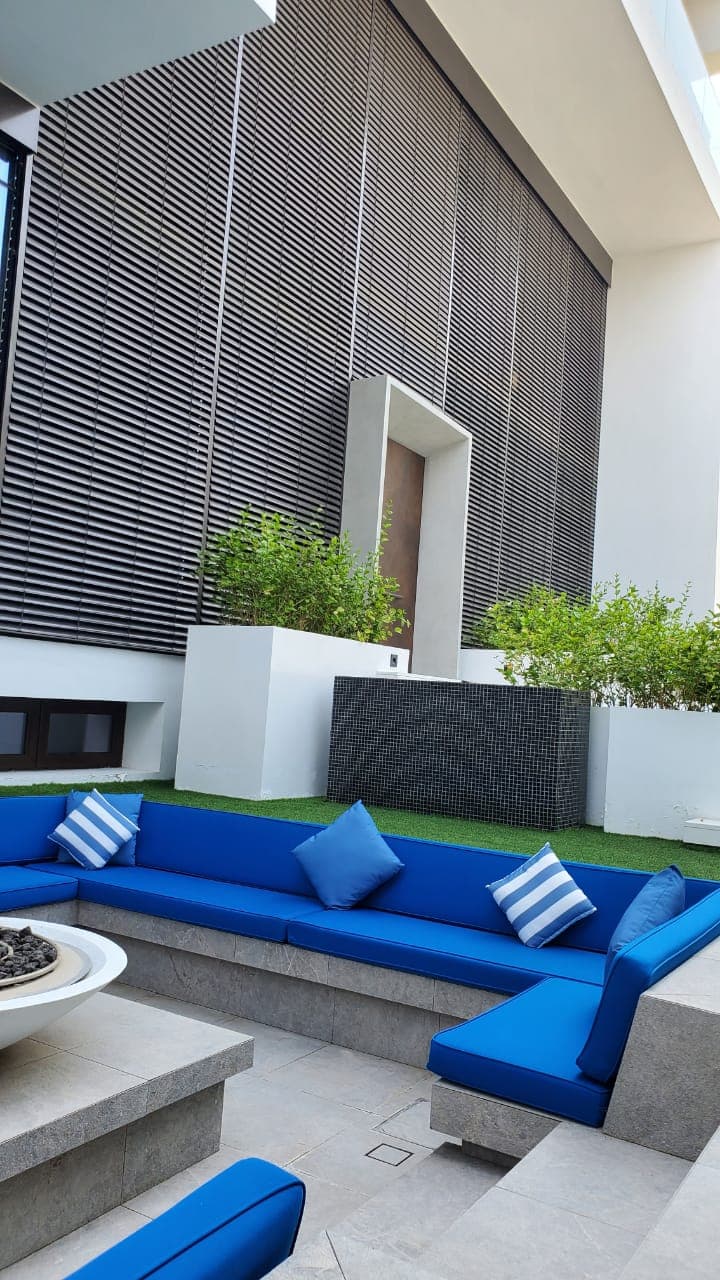

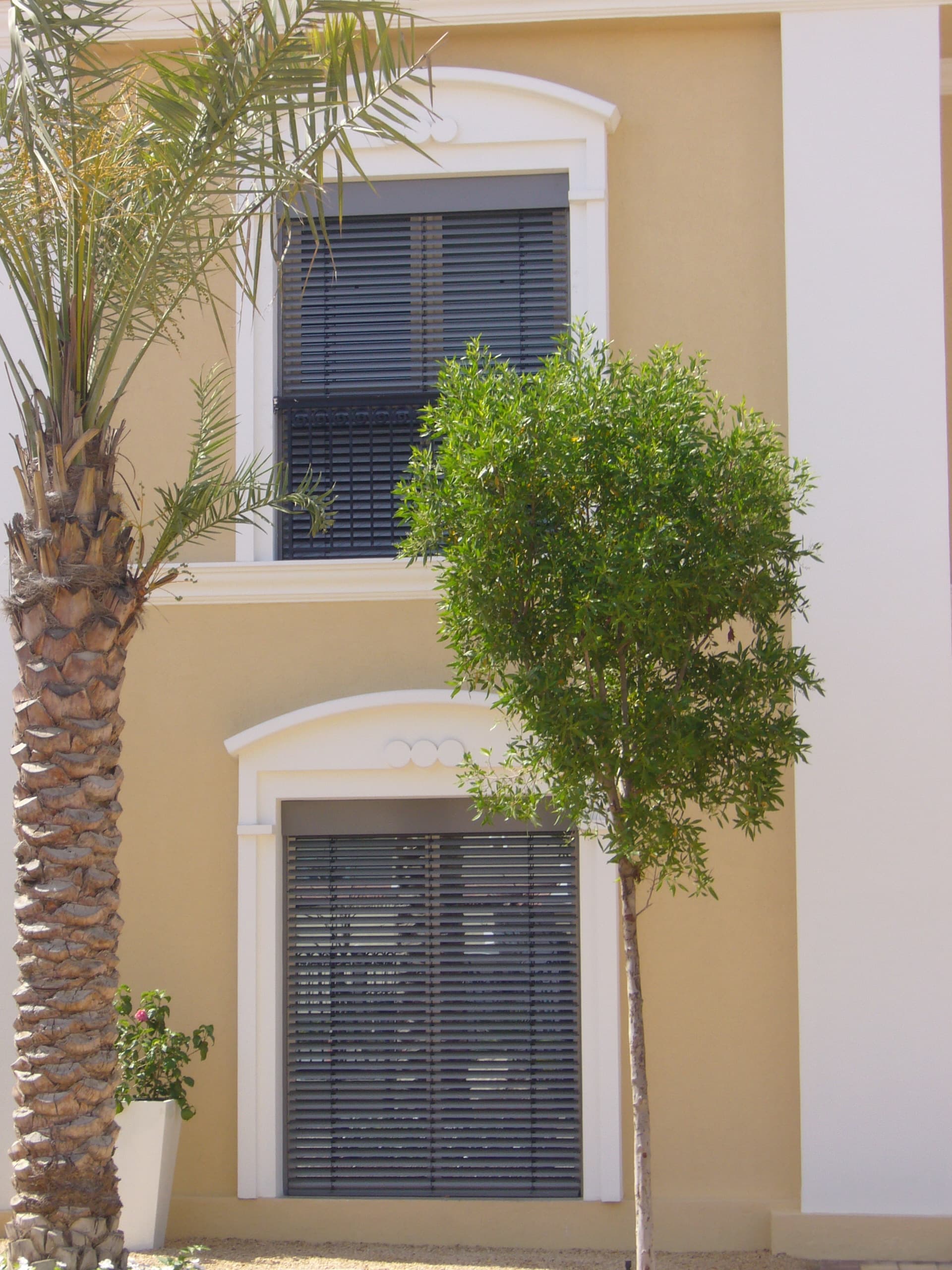

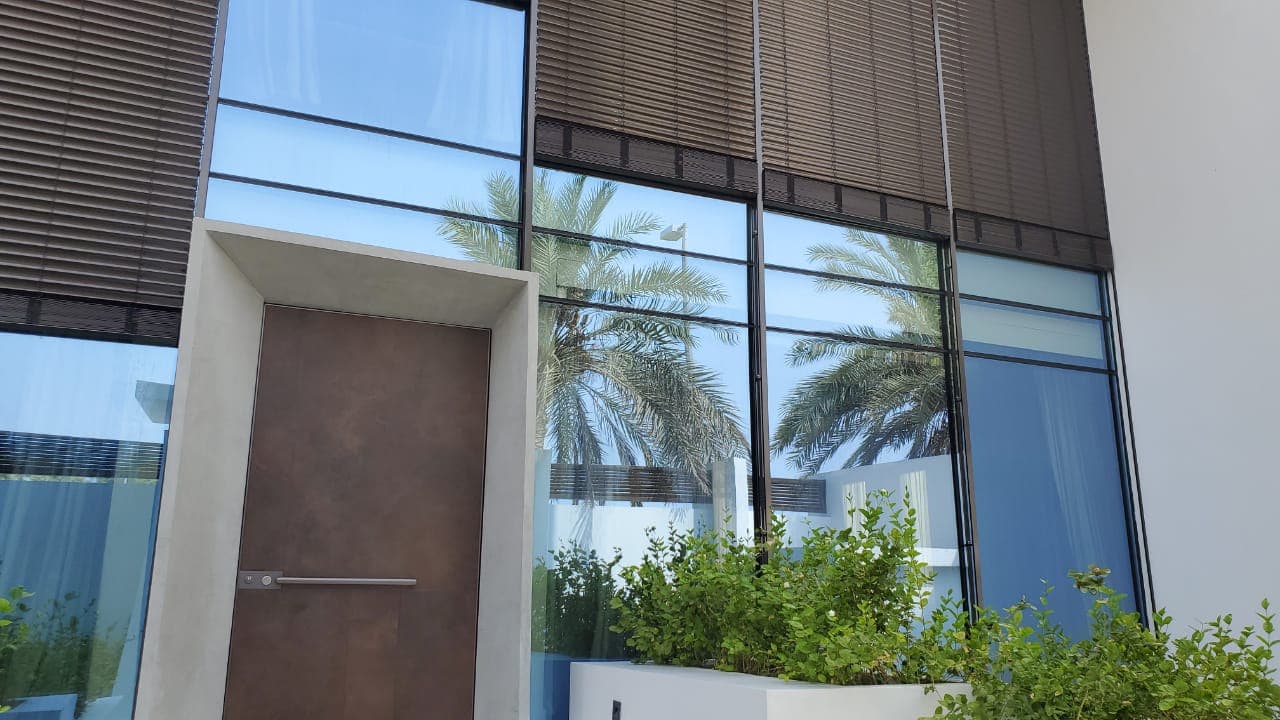

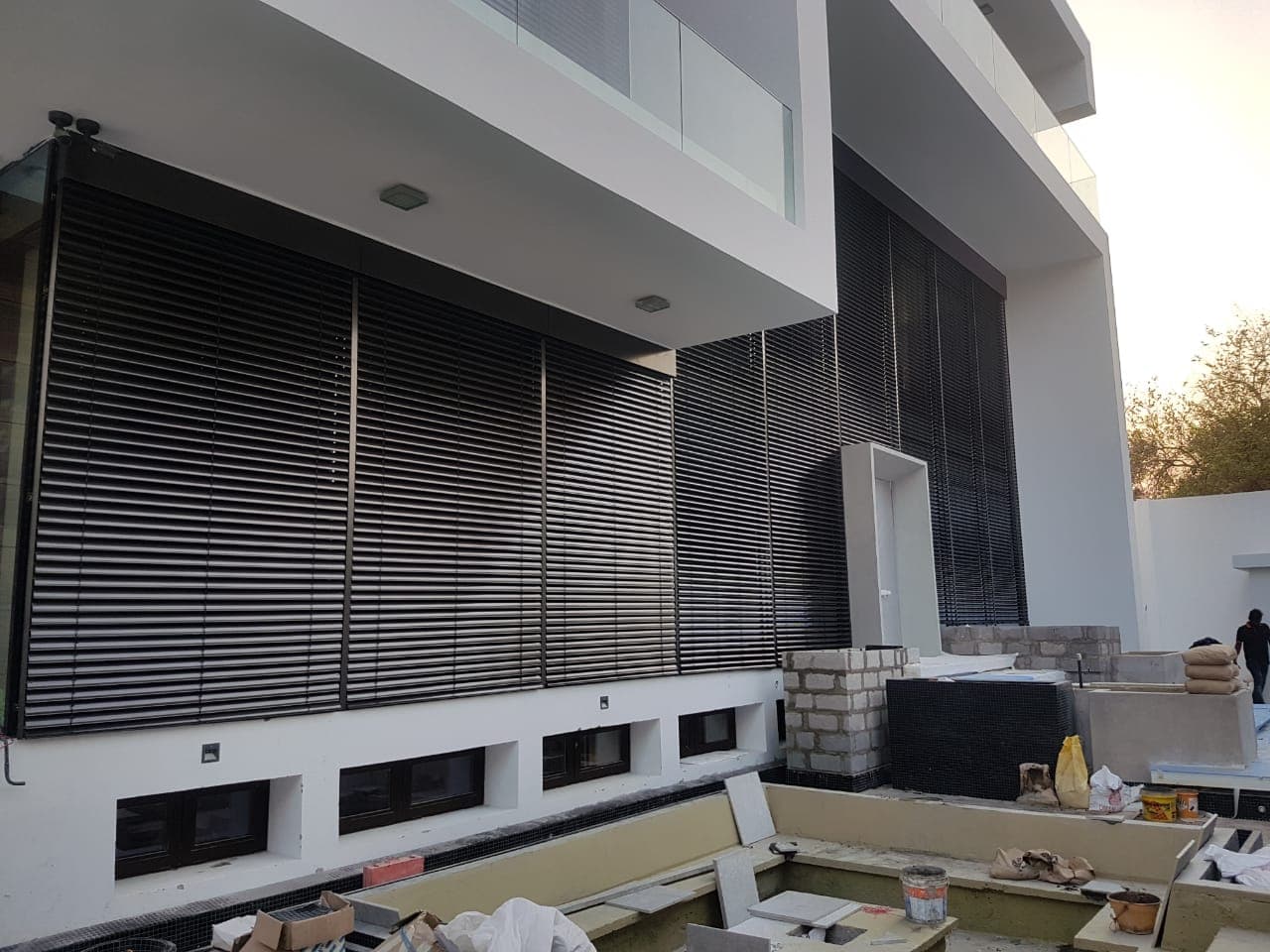

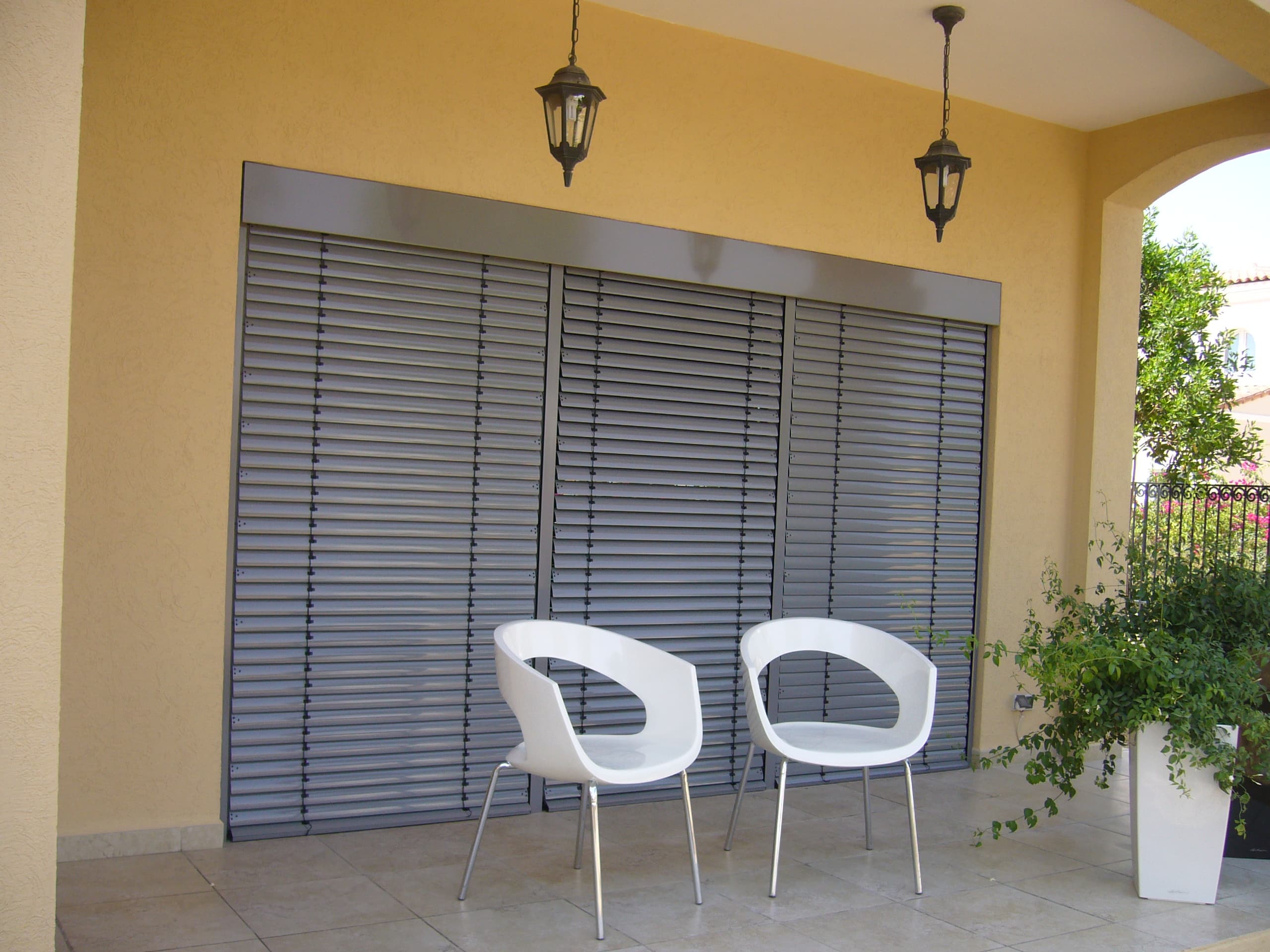

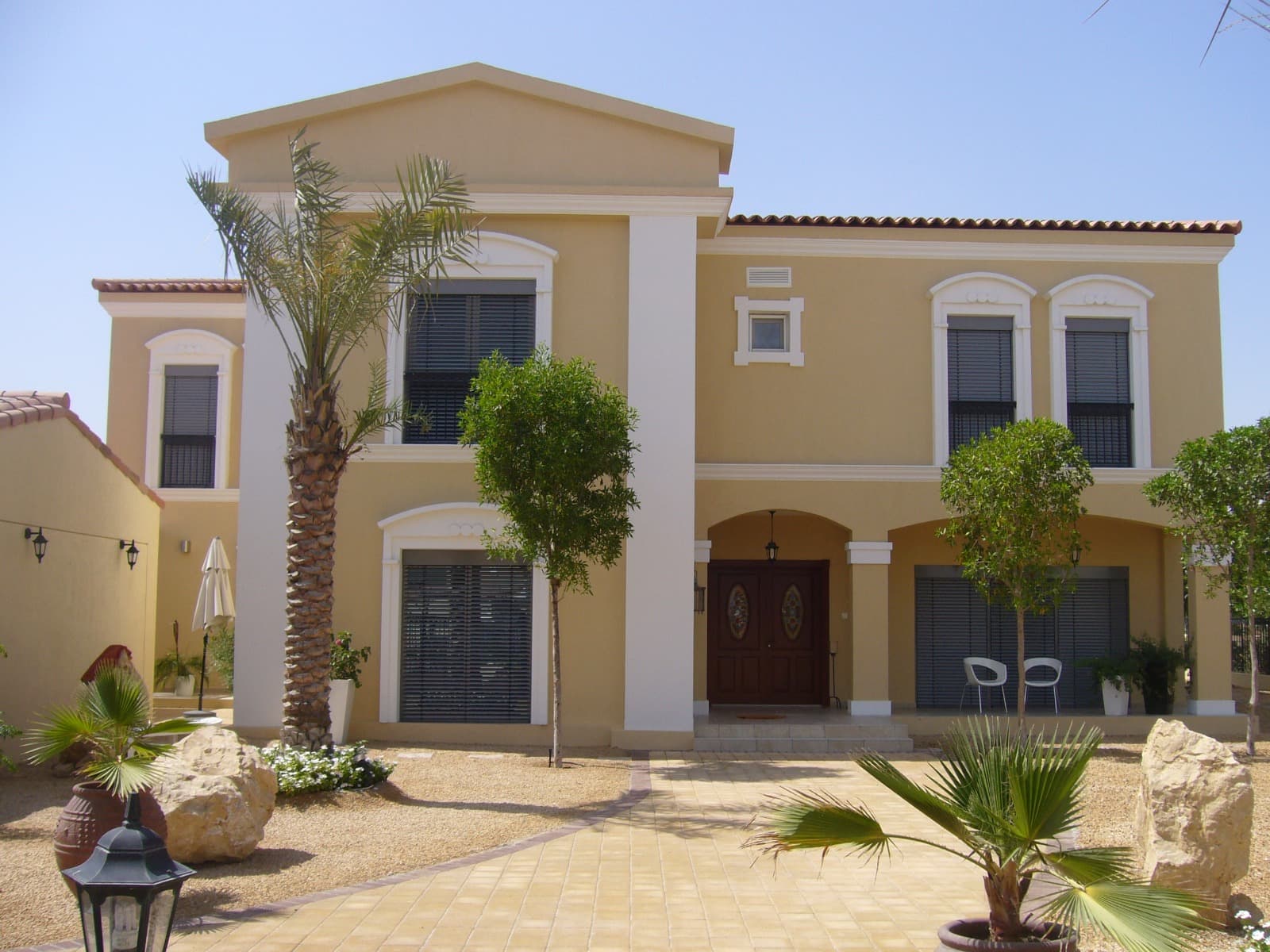

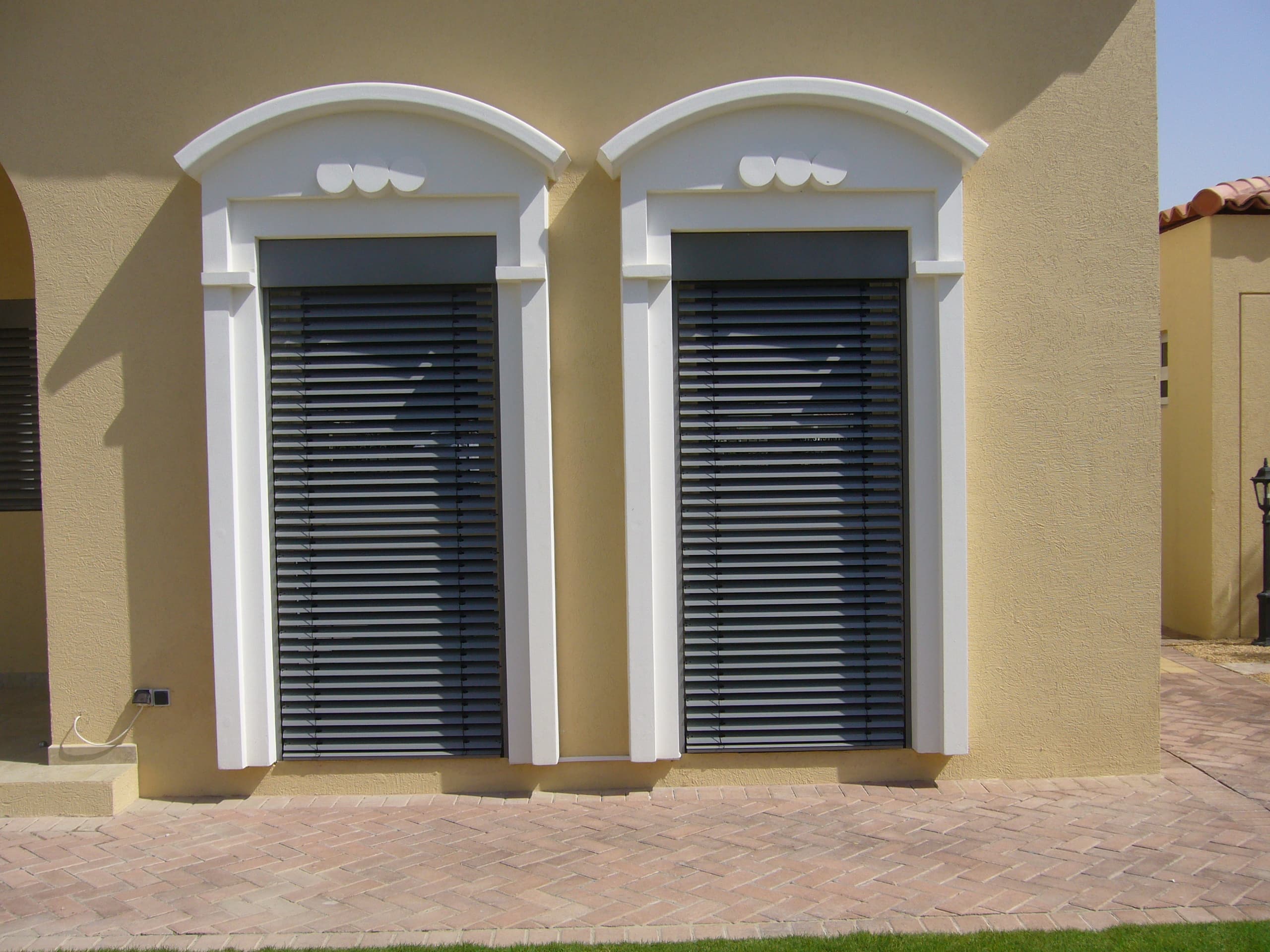

German External Venetian Blinds Media & Installations
High-resolution project photography and detail captures of this solution from our projects across the UAE.
Engineering in Motion & Field Demos
Watch real-world YouTube video demonstrations and field operations showcasing deployment speed, wind stability, and motorized precision.
WAREMA External Venetian Blinds: Automated Sun-Tracking
80mm rolled aluminum slats rotating 90 degrees to block heat while harvesting daylight.
Smart Home Integration & KNX Slat Management
Precision slat angle control synchronized with solar azimuth and weather stations.
