Q MESH - LATERAL PLEATED FLY SCREEN
Barrier-Free Lateral Pleated Insect Screen for Large Architectural Openings
.jpeg&w=3840&q=75)
Designed for Architectural Distinction & Performance
The Q Mesh Lateral Pleated Fly Screen is an advanced barrier-free insect protection system specifically engineered for modern wide-span sliding doors, folding doors, and luxury patio entrances. Featuring high-durability accordion-pleated micro-mesh and ultra-low profile floor guides (12mm), it provides smooth, effortless lateral sliding without trip hazards. The pleated mesh folds neatly into a compact vertical side cassette when open, maintaining uninterrupted panoramic views and allowing continuous natural airflow while sealing completely against insects and airborne desert debris.
Key Engineering Highlights
- Ultra-low 12mm barrier-free floor track designed for wheelchair accessibility and seamless indoor-outdoor transitions
- Custom spans up to 12 meters in bi-parting double configurations with zero middle mullions
- UV-stabilized pleated polyester mesh resistant to UV deterioration and desert climate extremes
- Effortless fingertip glide with multi-point stainless steel tension cord stabilization
- Architectural powder-coated aluminum profiles available in custom RAL finishes
Require CAD / BIM Specifications?
Contact our engineering team for custom drawings, wind calculations, and site surveys.
Technical Specifications
Product #01Single sash: 6.0m | Bi-parting double: up to 12m width
Up to 3.7m vertical clearance
12mm ultra-low barrier-free floor track 25mm - Standard Bottom Profile
UV-stabilized pleated polyester Premium Quality, High Clear, Dust Free, Flexible Mesh - Superior Durability, High Fold Memory, High Impact Absorption & Strong Wind Resistance
Extruded 6063-T6 aluminum
Manual lateral sliding with magnetic catch and cord guides

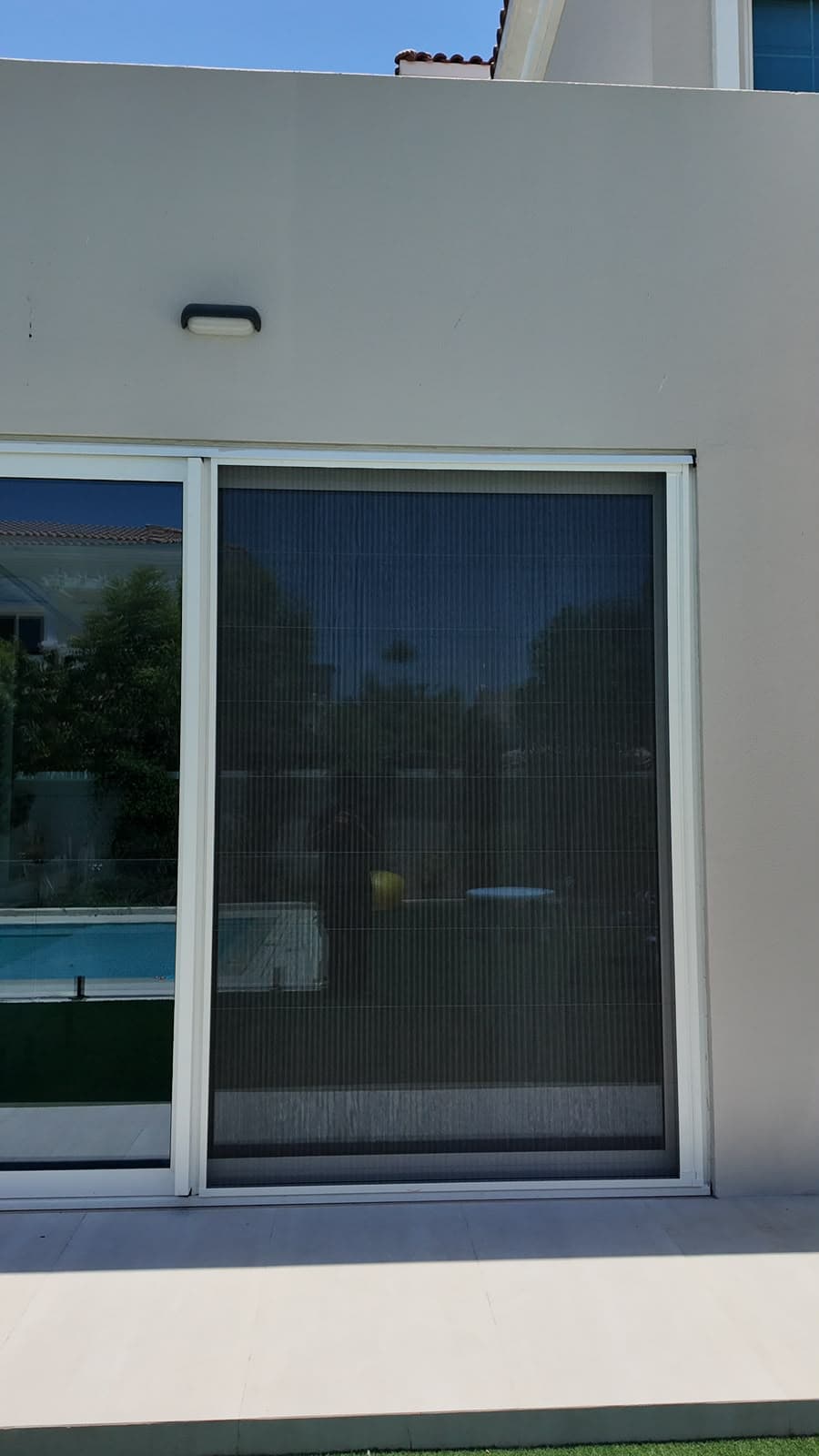

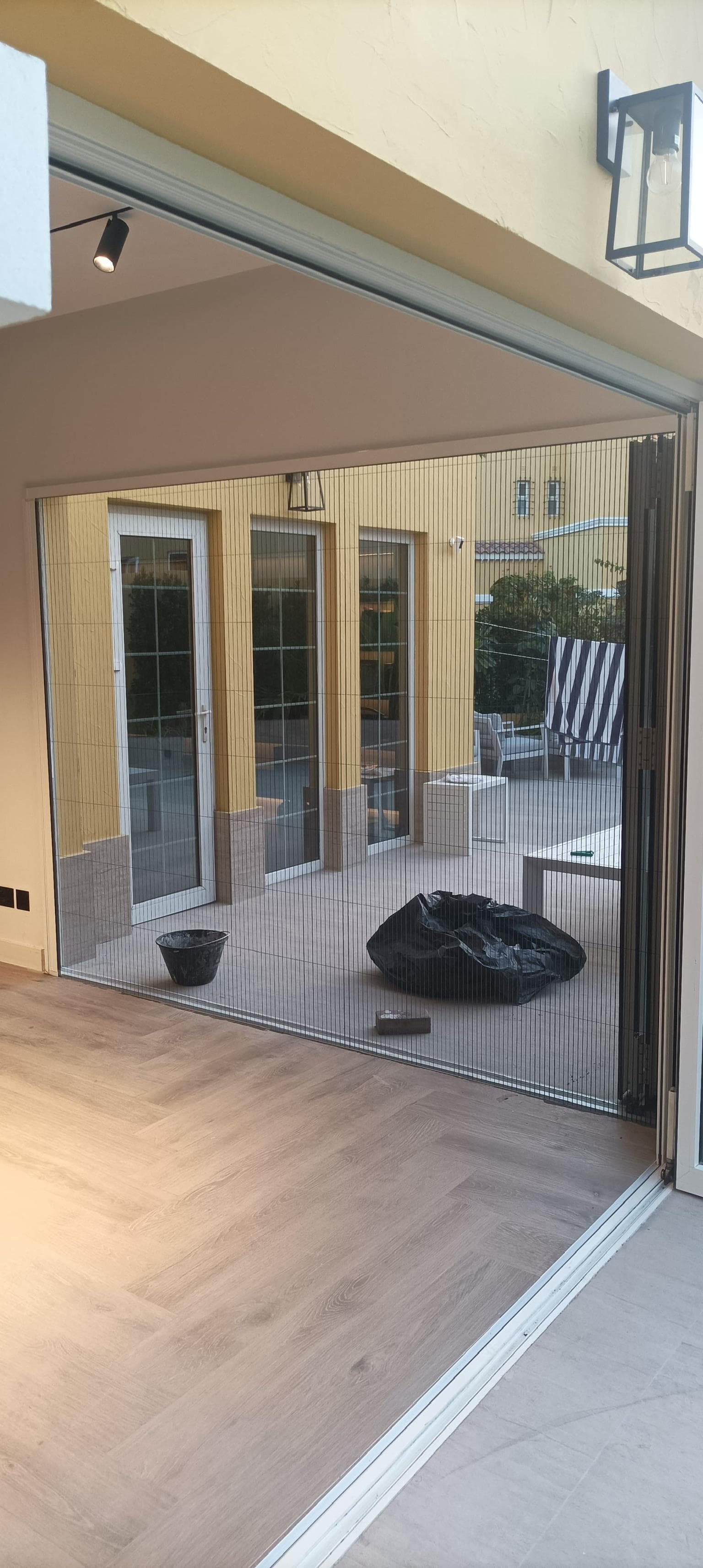

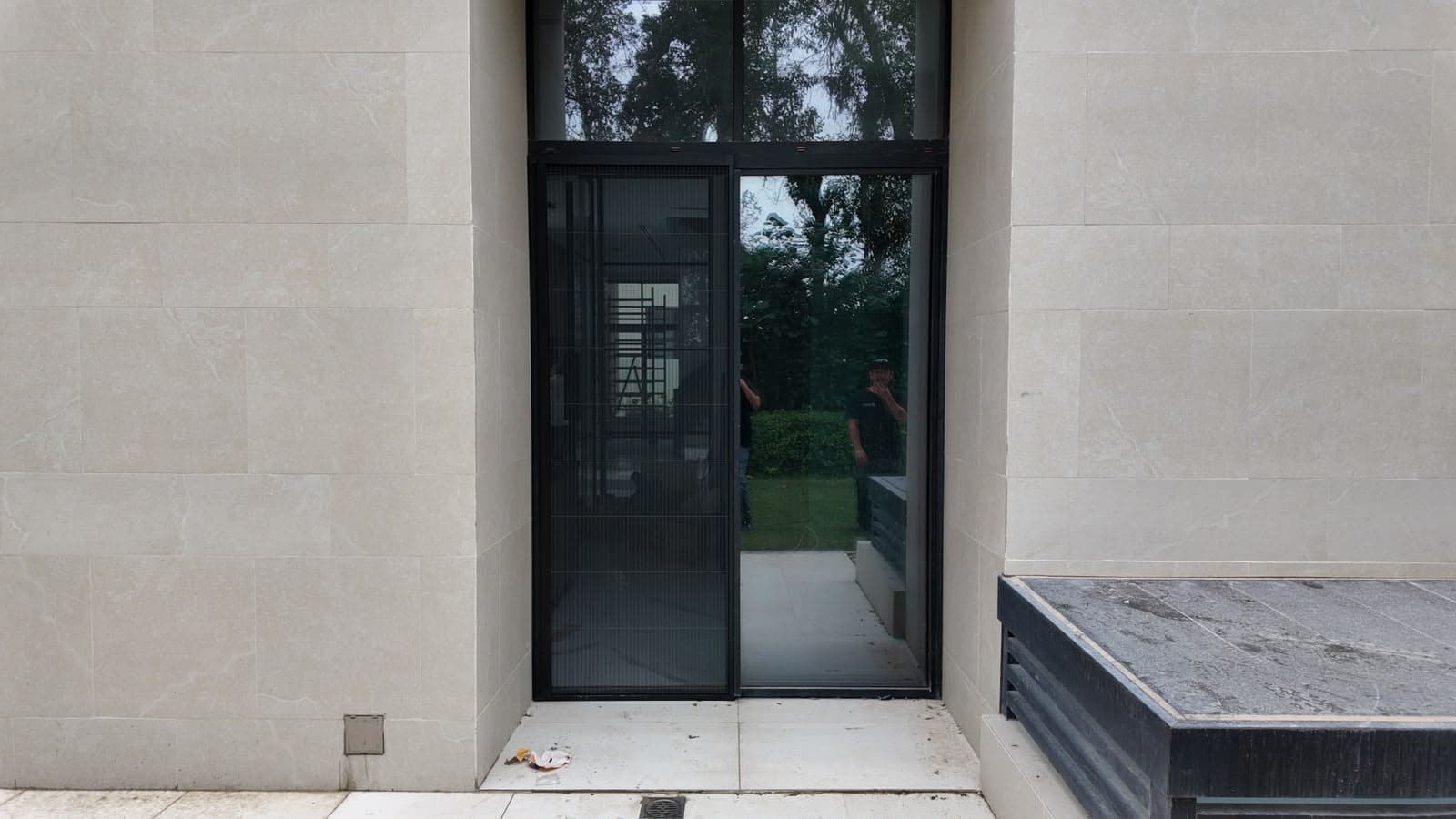

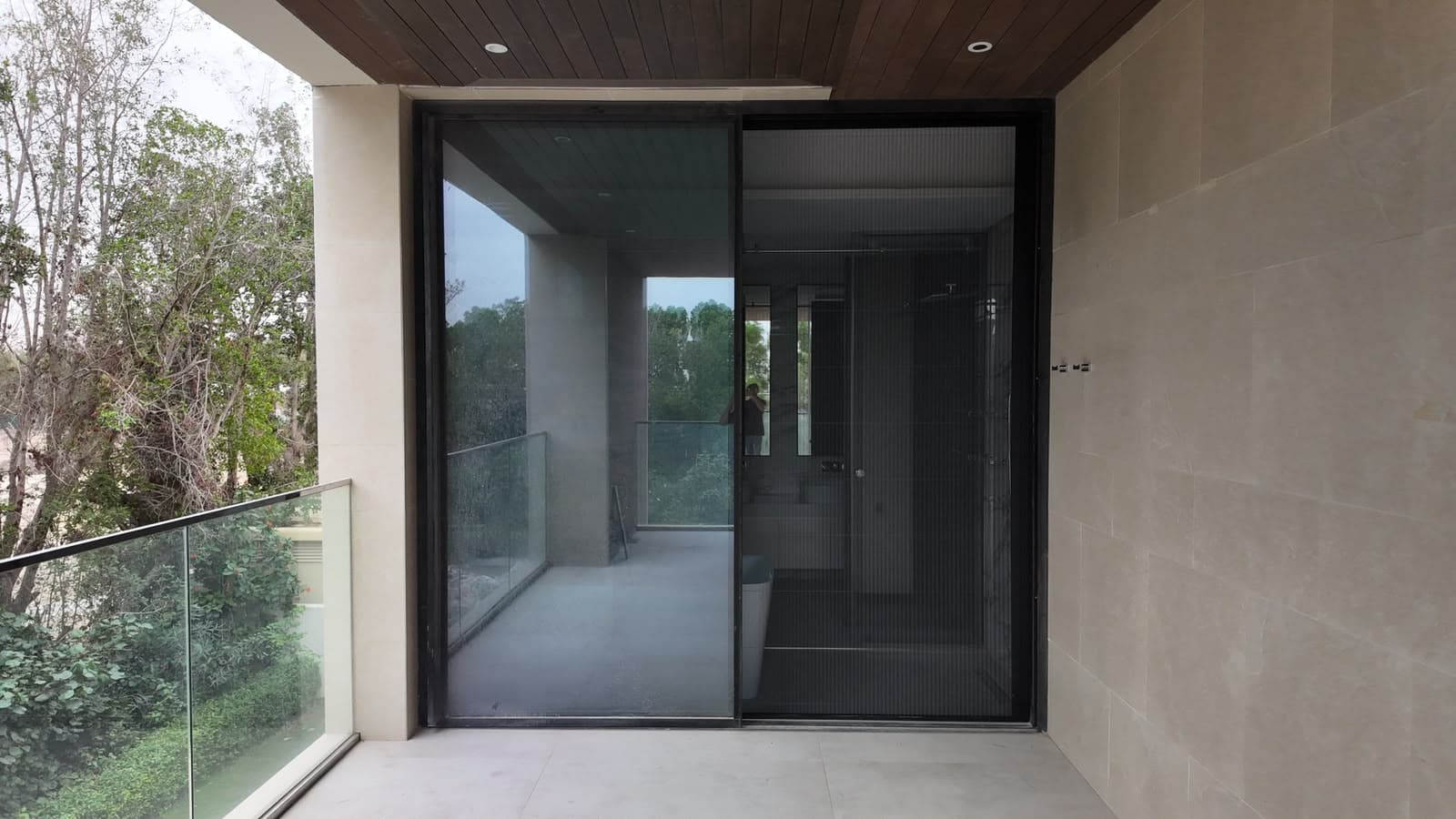

Q Mesh Lateral Pleated Fly Screen Media & Installations
High-resolution project photography and detail captures of this solution from our projects across the UAE.
.jpeg&w=3840&q=75)
.jpeg&w=3840&q=75)
.jpeg&w=3840&q=75)
Engineering in Motion & Field Demos
Watch real-world YouTube video demonstrations and field operations showcasing deployment speed, wind stability, and motorized precision.
Q-Mesh Lateral Pleated Fly Screen
Real installation footage of the Q Mesh lateral pleated screen from the Quality Space YouTube channel.
Q-Mesh Pleated Flyscreen
Additional field demo of the Q-Mesh pleated mesh system in operation.
